Information

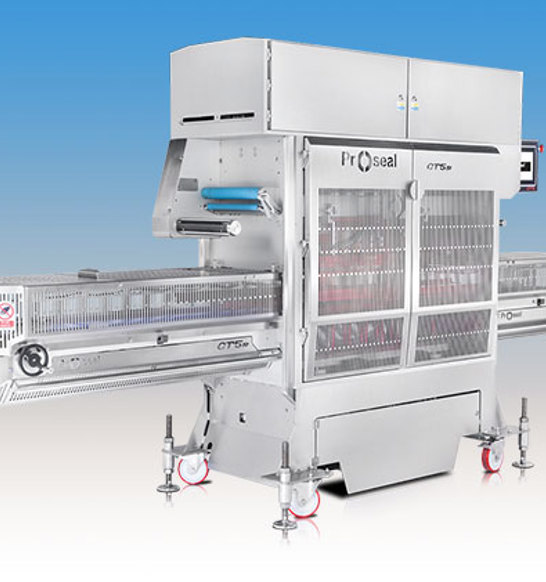

The Proseal GT5s is an automatic, extra-large capacity, high-speed, in-line tray sealing system designed to cut labor costs.
It combines high throughput with rapid tool-changing and space-saving compact design. Capable of up to 160 Atmospheric packs per minute with an 8-impression tool, the GT5s system is packed with user-friendly benefits including our unique QR modular conveyor system. Optional ‘free-flow’ gas flush Modified Atmosphere Packaging (MAP) available for extended shelf life. Designed to accept randomly spaced trays from any conveyor and can be fully integrated with other line equipment.
Details
- Designed to perform the following styles of heat seal to a pre-formed tray; Atmospheric, Gas Flush or Hermetic Shrink and suited to all relevant food categories including; Fish and Seafood, Pork, Red Meat, Poultry, Soft Fruit, Fresh Produce, Ready Meals and Desserts.
- eWON a machine connection system to deliver real time data and error condition support, remote setup, and software upgrades, using a customer’s existing IT network
- I-film intelligent film reel monitoring system which actively adjusts film tension based on reel diameter to increase print quality and film reel efficiency, reduce component duty, and provides a film end warning system.
- ProTect a contactless machine login and audit trail system
- Active conveyors to allow the machine to be used as a straight through conveyor when packs don’t require sealing
- All around seal only (No Cut) for packs with pre-cut or hinged lids
- Free flow gas flush MAP (Modified Atmosphere Packaging
- High Oxygen (O2) gas flush
- Close Cut - Method of maximizing throughput and reducing film waste
- Inboard Cut (IC) option to provide ‘form, fill and seal’ tray presentation
- Film coding and printing
- Foil crimping
- Pharmaceutical Blister Packaging Machines
- Sandwich Pack Sealing for Board, Recyclable and Non-Recyclable Plastic
- Optional Control Integration of peripheral equipment, such as: de-nesters, fillers, multi-head weighers, laser coders, labelers.
- Hot Rod - long-lasting, water-resistant seal, tool-heating element giving reduced energy consumption especially developed for sealing Smooth Wall Foil Trays
- Sale, Lease Purchase and Rental options available
