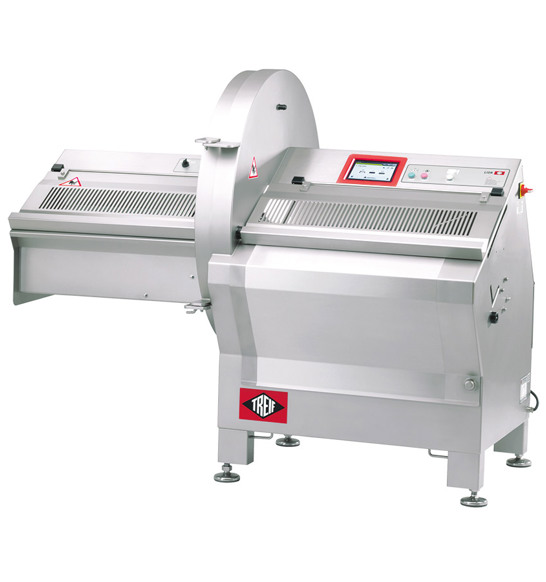

TREIF LION and TREIF LION bacon

Flexible portioning and slicing, the TREIF LION and TREIF LION bacon provide high-speed accuracy when cutting raw material. The dynamic feed system ensures cutting precision for the consistent thickness of slices and portions, even with continuous product feed.

Both solutions have large cutting chambers that can accommodate bulky pieces of raw material, minimizing pre-cutting to increase throughput speed and reduce manual handling.

While the TREIF LION bacon has the flexibility to cut a range of raw materials, it really shines when used for the precision portioning of bacon and other pork products from fresh, frozen, smoked, or cooked, with or without rind.

To suit the specific needs of all processing lines, both the TREIF LION and TREIF LION bacon are available with the choice of a simple control panel or a user-friendly touchscreen with programming capabilities and with or without a conveyor belt infeed.

	TREIF LION F/FB	TREIF LION E/EB	TREIF LION bacon FB	TREIF LION bacon EB
Max. cut-off length	0.5-70 mm (1/50-3”)	0.5-250 mm (1/50-10”)	0.5-70 mm (1/50-3”)	0.5-250 mm (1/50-10”)
Max. cuts per minute (dual blade)	400	400	300	300
Product cross section	W: 350 mm (14”) H: 240 mm (10")	W: 350 mm (14”) H: 240 mm (10")	Width: 270 mm (11”) Height:  108 (4")	Width: 270 mm (11”) Height:  108 (4")
Max. infeed length	700 mm (28”)	700 mm (28”)	620 mm (14”)	620 mm (14”)
Housing dimensions  Without belt        With belt	Length: 1,890 mm (74”) Width: 1,150 mm (46”) Height: 1,550 mm (61”) Length: 2,690 mm (106”) Width: 1,150 mm (46”) Height: 1,550 mm (61”)	Length: 1,890 mm (74”) Width: 1,150 mm (46”) Height: 1,550 mm (61”) Length: 2,690 mm (106”) Width: 1,150 mm (46”) Height: 1,550 mm (61”)	Length: 2,690 mm (106”) Width: 1,150 mm (46”) Height: 1,550 mm (61”)	Length: 2,690 mm (106”) Width: 1,150 mm (46”) Height: 1,550 mm (61”)
Connecting load	3.4-3.5 kW	3.4-3.5 kW	3.3 kW	3.4 kW
Product temperature	Down to -4°C (24.8°F)	Down to -4°C (24.8°F)	Down to -4°C (24.8°F)	Down to -4°C (24.8°F)
Weight   Without belt With belt	Approx. 320 kg (706 lbs) Approx. 409 kg (902 lbs)	Approx. 320 kg (706 lbs)  Approx. 402 kg (902 lbs)	Approx. 409 kg (902 lbs)	Approx. 402 kg (902 lbs)
Accessories	On request	On request	On request	On request

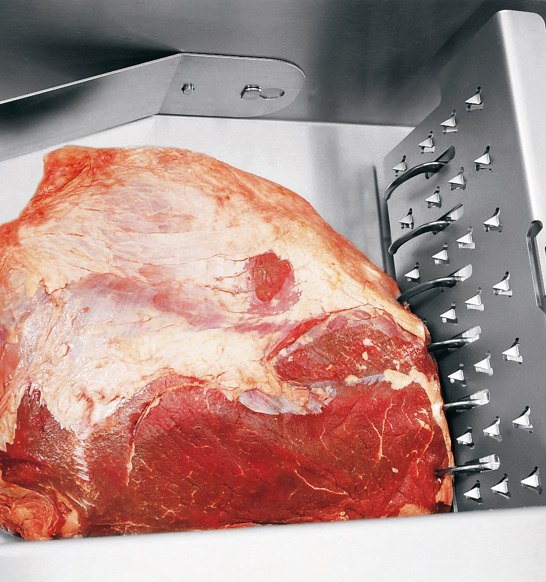

TREIF LION: large chamber bone-in and boneless cutting

TREIF LION bacon: Accurate cutting from fresh, frozen, smoked, or cooked
